Description

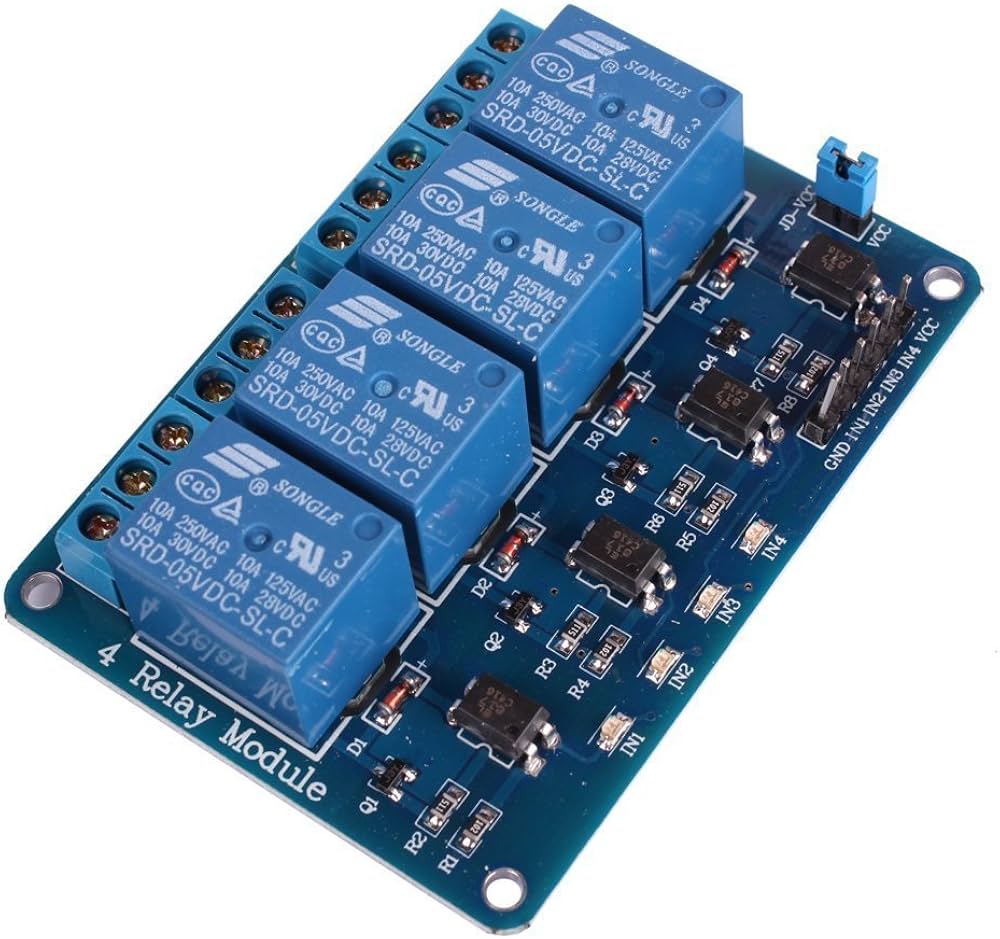

5V 10A 4-Channel Relay Module – High-Performance Switching for Multiple Devices
Key Features:
- 4 Independent Relays: This module is equipped with four high-quality electromechanical relays, each capable of handling up to 10A at 250V AC or 30V DC. Each relay operates independently, allowing you to switch multiple devices with a single module.
- Opto-Isolated Design: The relays feature opto-isolators for improved safety and performance, protecting your control circuits from high-voltage spikes or interference. This isolation ensures reliable operation, even when switching high-power loads.
- High Current Capacity: Each relay supports up to 10A of current, allowing the module to control powerful devices such as appliances, lights, and motors. This makes it suitable for switching both high- and low-power electrical circuits.
- 5V Control Voltage: The module is designed to work with 5V control signals, making it compatible with a wide range of microcontrollers and development platforms. It requires minimal power to activate the relays, ensuring seamless integration with low-voltage systems.

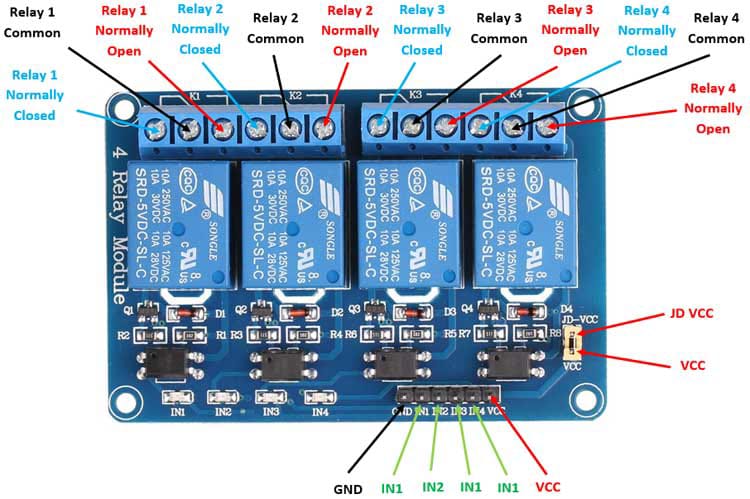

- Easy-to-Use Interface: The module features simple, clearly labeled input pins (IN1, IN2, IN3, IN4) for each relay, making it easy to control using digital signals from your microcontroller. The module also includes indicator LEDs for each relay, allowing you to quickly check the relay’s status during operation.
- Screw Terminal Connections: With screw terminals for both the load and power connections, the module offers secure, reliable wiring for high-current circuits. It ensures that your devices remain firmly connected, reducing the risk of loose connections or short circuits.
- Durable PCB Design: The relay module is built on a high-quality PCB with clear traces and layout, ensuring durability and long-term performance. The relays are securely soldered, and the board includes mounting holes for easy installation in your project or system.
Technical Specifications:
- Operating Voltage: 5V DC
- Relay Channels: 4 (independent)
- Max Switching Current: 10A
- Max Switching Voltage: 250V AC / 30V DC
- Control Signal: 5V TTL
- Opto-Isolation: Yes
- Indicator LEDs: Yes (one for each relay)
- Relay Type: SPDT (Single Pole Double Throw)
- Dimensions: 73mm x 50mm x 20mm
Package Contents:
- 1 x 5V 10A 4-Channel Relay Module
Order your 5V 10A 4-Channel Relay Module today and enjoy reliable, safe switching for your high-power devices!
